Visual Bottle Inspection Machine

Application & Process

Prism Visual Bottle Inspection Machine is used for visual Inspection of filled bottles to checked for non required foreign particles & leak checking and to ensures maintain quality standard of products as per requirements in Pharmaceuticals & Foods Industries.

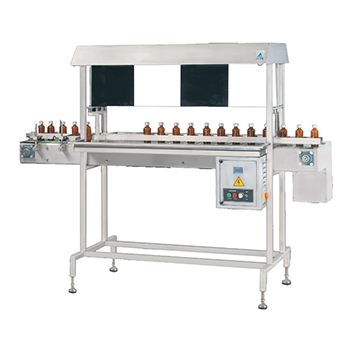

Prism Inspection table is equipment consisting of a three-track conveyor with a hood with lighting arrangement and visual inspection background of alternate black & white color. Inspection table have stainless steel structure with moving S.S. slat chain. Structure made out of S. S. square pipe & supported on adjustable bolts.

The central conveyor belt brings the bottle from the capping machine conveyor. These bottles are automatically bifurcated on the two adjoining conveyor belts & further on the side tables for operators sitting on either side of the table. The operators in turn pick up the bottles & visually inspect the bottles in the alternate white & black background to check for any partials in the liquid filled, sealed & breakage of bottle. After inspection, good bottles are placed in the central track, which is transfer for labeling.

Salient Features

• Designed as per cGMP - Current Good Manufacturing Practices compliance.
• A machine structure is made from AISI 304 with matt finish.
• High-speed visual inspection with high output.
• Length can make as per customer requirement.
• PVC black & white board as per GMP norms
• Belt drives through gear motor with variable frequency drive.
• Provides guide for chain of UHMW self lubrication.
• Adjustable height of conveyor belt, to align with other machine of the line.
• Self-alignment bearing for easy maintenance.
• Rigid Vibration free Construction for trouble free performance.

Safety Features

• Overload relay protection and emergency stop.
