Application & Process

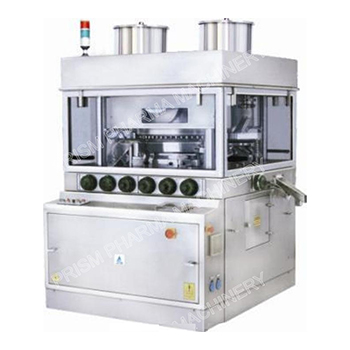

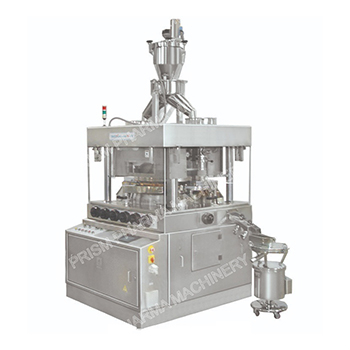

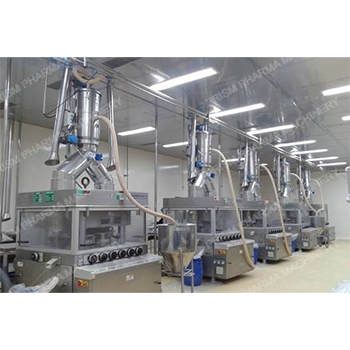

The Prism TabXpress-IV is a high-speed, double-sided rotary tablet compression press designed to meet the demands of millennium batch size production. It was created with a focus on exceeding the highest cGMP requirements and ensuring efficient and economical tablet production.
The Prism TabXpress-IV features a unique ergonomic design that makes it easy to operate, with fast changeover and cleaning times that minimize downtime. The tablet press is separated into three zones: the tablet compression zone, the machine service zone, and the electrical controls zone. Additionally, an optional feature of the Prism TabXpress-IV is a touch screen interface with PLC controls that is mounted in a separate electrical controls cabinet, providing a user-friendly experience.
The Machine Ergonomics Design Concept:
The Prism TabXpress-IV has been completely new designed according to the most modern ergonomic aspects.
- cGMP confirm.
- Stainless Steel and Acrylic Glass Surrounding.
- Easy to Operate and Maintenance.
Salient Features
- Design Conforming to cGMP standards.
- All Product contact parts AISI 316/316L & non contact parts AISI 304.
- Simple and Convenient Operation, Changeover, Cleanliness, Operator Protection and Easy to Maintenance.
- Pre-Compression System to improve tablet quality.
- All Controls like tablet thickness, weight adjustment, Pre-press adjustment are in front of the machine and outside the compression zone.
- Turret Drive from Closed Gearbox through Internal Helical Gearing with Continuous Lubrication.
- Electro Magnetic Clutch Drive for Safety, Ease and Maintains Free operation.
- AC Frequency drive for Turret Motor and Feeder Motor.
- Force Feeder for Powder Feeding with Bottom side drive.
- Fast changeover and Easy cleaning designed with Easy removal Weight adjustment sector.

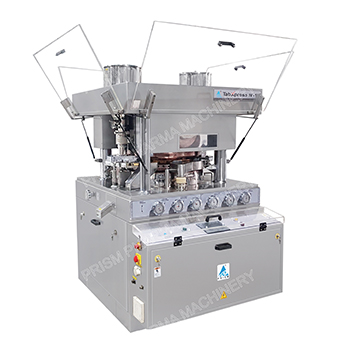

- Upper guard with Hydraulic Cylinder and Lower guard From S.S. 304 fitted Limit switch.
- Turret made from Special graded casting and option for 3pc.turret with S.S.316 Die pot.
- Disk Spring for Pressure Loading & Overloading release.
- Auto Lubrication System for Turret gearing and fulcrum pins.
- Paint free Tablet Compression zone.
- Dust suction nozzle for Controlling Dusting.
- Closed Dust free Front Electric Control Panel easy Removal type.
Safety Features
- Upper Guard Door interlocking.
- Overload pressure release mechanism.
- Overload relay & Emergency stop.
- Gravity feeder System.
- Powder level sensor in hopper.
- Two layer tablet attachment.
- During Initial Start and Stop Rejection system and sampling device.
- PLC Controls with HMI touch screen.
- SCADA system with 21 CFR Part 11 Compliance.
| Model | TabXpress IV- 45 | TabXpress IV- 55 | TabXpress IV- 69 | TabXpress IV- 75 |
| No. of Station | 45 | 55 | 69 | 75 |
| Type of Tooling | D | B | BB | BB |
| Output-tablets per Hour | 65,000 to 325,000 | 79,000 to 396,000 | 99,000 to 497,000 | 108,000 to 540,000 |
| Max. Operating Pressure (Main) | 100 KN | 65 KN | 65 KN | 65 KN |
| Operating Pressure - Pre press | 10 KN | 10 KN | 10 KN | 10 KN |
| Max. Tablet Diameter | 25 mm | 16 mm | 11.1 mm | 11.1 mm |
| Depth of Fill | 20 mm | 17.4 mm | 17.4 mm | 17.4 mm |
| Upper punch penetration | 3 to 6 mm | 3 to 6 mm | 3 to 6 mm | 3 to 6 mm |
| Total Power consumption | 12 HP / 9 kW | 12 HP / 9 kW | 12 HP / 9 kW | 12 HP / 9 kW |
