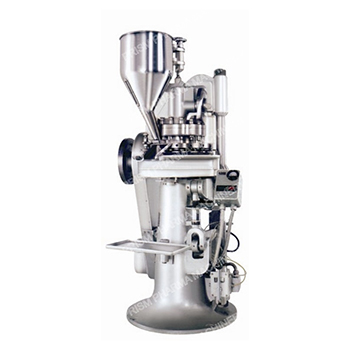

PTCMD3-Single Sided Rotary Tablet Press Machine is standard model machine and used for production of simple and precise tablets from powder in Pharmaceutical and relevant Industries.
PTCM-D3 is single sided rotary tableting machine with painted round body and suitable for small batch size. This is a single side rotary tableting standard model with rigid design, precise and simple tablet compression machine. The PTCM-D3 model machine is designed to enable to maximum cleanliness in operation and accessibility, thus offering tremendous easy to operate, clean and maintenance. The PTCM-D3 Tablet press is offered in different two model Viz. Tooling “D” & “DB” Tooling.
| MODEL | PTCMD3-16 | PTCMD3-23 | PTCMD3-25 |
|---|---|---|---|
| No. of Station | 16 | 23 | 25 |
| Type of Tooling | D | DB | B |
| Output/Hour | 15,600 to 28,000 | 22,250 to 41,400 | 24,000 to 45,000 |
| Max. Operating pressure | 10 Tons | 10 Tons | 12 Tons |
| Max. Tablet Diameter | 25 mm | 16 mm | 30/40 mm |
| Max depth of fill | 20 mm | 20 mm | 20 mm |
| Main Electric Motor | 2 HP / 1.5 kW | 2 HP / 1.5 kW | 2 HP / 1.5 kW |
