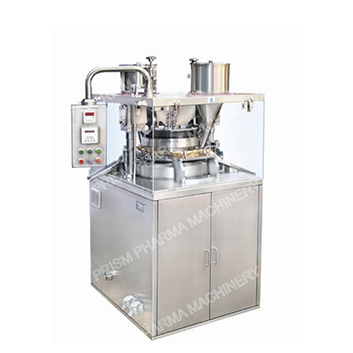

Prism PTCM-B4 Double Sided Tablet Press Machine is used for production of simple and precise tablets from powder in Pharmaceutical and relevant Industries.
Prism PTCM-B4 Double sided rotary tablet press GMP model is suitable for medium size batch production. The PTCM-B4 Tablet Press designed in an effort to exceed the highest cGMP requirement with used of advance technology and ensure the most ergonomics and efficient tablet production. The PTCM-B4 Tablet Press is offered in three different model Viz. Tooling “D”, “B” & “BB” Tooling.
The Machine Ergonomics Design Concept :
The Prism PTCMD4 has been completely new designed according to the most modern ergonomic aspects.
| MODEL | PTCM-B4-D 27 | PTCM-B4-35 | PTCM-B4-45 |
|---|---|---|---|
| No. of Station | 27 | 35 | 45 |
| Type of Tooling | D | B | BB |
| Output-tablets per Hour | 50,000 to 129,000 | 70,000 to 168,000 | 90,000 to 216,000 |
| Max Tablet Diameter | 25 mm | 16 mm | 11 mm |
| Max depth of fill | 20 mm | 17.5 mm | 17.5 mm |
| Max. Operating pressure | 10 Tons | 6.5 Tons | 6.5 Tons |
| Upper Punch penetration | 1.5 to 6 mm | 1.5 to 6 mm | 1.5 to 6 mm |
| Main Electric Motor | 5 HP / 3.70 kW | 3 HP / 2.25 kW | 3 HP / 2.25 kW |
| Force Feeder Motor-Option | 0.25 HP/0.18 kW x 2 Nos. | 0.25 HP/0.18 kW x 2 Nos. | 0.25 HP/0.18 kW x 2 Nos. |
