Semi Automatic Air‐jet Cleaning Machine

Application & Process

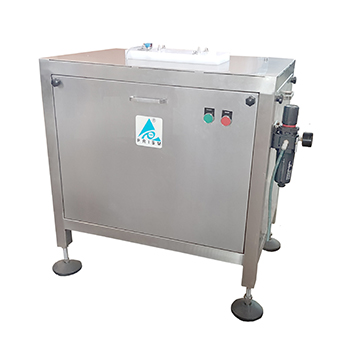

The Prism Semi Automatic Air Jet Bottle Washing Machine is compact unit totally made of S.S. structure with height adjustment legs, are provided to adjust the machine height. and highly efficient machine with elegant look. This multifunctional multi featured machine meets the GMP requirements of washing for glass and plastic bottles. The machine operates on the linear principle mechanism and requires manual loading and unloading of bottles

Operation:

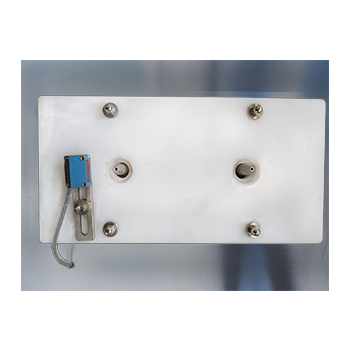

The containers are placed manually over pockets provided on the top place of the Machine. The Cleaning section is equipped with continuous vacuum system. With the placement of container over pockets, the photo sensor senses the Containers and starts to flush the air inside the neck of the container and simultaneously vacuum will suck the particles, disturbed by the air.

Salient Features

• Bottle manual load at washing nozzle.
• Bottle manual unload from washing nozzle to on turn table.
• High-pressure air jet nozzles ensure perfect wash of Bottles.
• Air Jet Blowing with 0.3 micron HEPA filter air.
• Totally fabricated from SS Materials, All parts coming in contact with washing zones / jet are made from SS 316 materials.
• Machine is totally rigid and with stands continuous operation for long working. Hours without any trouble.

Safety Features

• Overload relay protection and Emergency stop.
