Application & Process

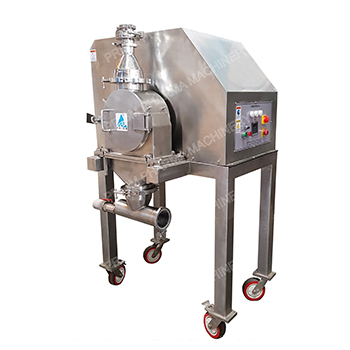

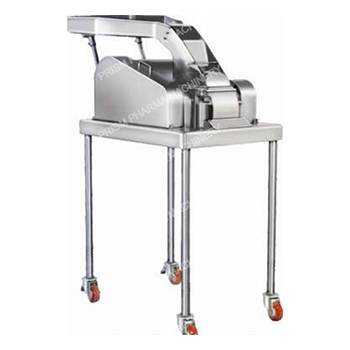

The Prism comminuting mill is used for the downsizing, milling, pulverization, and dispersion of both wet and dry products in the pharmaceutical, chemical, food, cosmetics, and fertilizer industries.

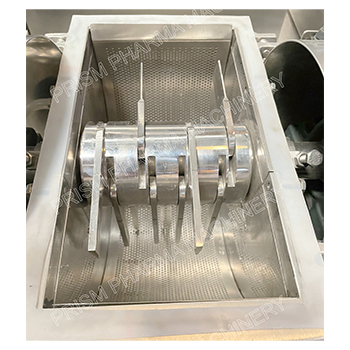

The product is poured from the top through the in-feed hopper, and it falls onto the rotor blade/beater assembly for milling or pulverization. Due to the knife edges mounted on the rotor, particle downsizing takes place, and the material is pushed outward through the bottom opening via a sieve. The knife edges can be easily removed for cleaning.
Salient Features
- Design is cGMP - Current Good Manufacturing Practices compliance.
- All Product contact parts AISI 316/ 316L & non contact parts AISI 304.
- High speed milling, granulating, pulverizing, mixing and size reduction of wet & dry material.
- Easy and simple to change knife to impact forward vice-versa by reversible chamber.
- Dynamic balanced beater assembly bearings are in a separate pillow block at outside chamber.
- Wide range of sieve of perforated and wire-mesh.
- Fitted on castor wheels for easy mobility.
Safety Features
- Chamber interlocking using limit switch.
- Overload relay protection and Emergency stop.
- Jacketing chamber for water cooling.
- FLP Motor and Control Panel.
| MODEL | PCMM - 16 | PCMM - 32 |
| Output Speed | 50 to 800 kg (Depends on product, speed and sieve size) | Up to 2000 kg (Depends on product, speed and sieve size) |
| Blades | Fixed / swinging type with knife and input edge | |
| Blade | 16 Nos. | 32 Nos. |
| Belt Speed With Belt Drive | 1000 / 2200 / 4400 RPM | 1000 / 2200 / 4400 RPM |
| Belt Speed With VFD | 100 to 4500 RPM | 100 to 4500 RPM |
| Screen Area | 495 mm X 135 mm | 495 mm X 270 mm |
| Electric Motor | 7.5 HP / 5.5 kW/3 ph A.C | 15 HP / 11 kW/ 3 ph / AC |
