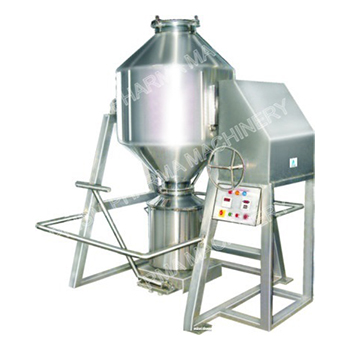

Blenders - Double Cone Blender

Application & Process

Prism Double Cone Blenders are used for mixing, lubricating and blending in Pharmaceutical, Nutraceutical, Food, Chemical, Cosmetics, Ceramics, Pesticide, Plastics and other Allied Industries.



The Prism Double shape blenders have long two corner of product container for more rubbing and tumbler effect to the material for fast and homogenizing mixing. It can perform homogenously dry mixing of free flowing powders, granules requiring low shearing force, Mixing and Blending of particles with rapid intermixing of particles irrespective of varying specific gravities. The material is loaded into the double cone blender drum. The double blender is tumbles the material in the container and spread out. The mixing is achieved in 5 to 15 minutes with better homogeneity.

Salient Features

  • Design is cGMP - Current Good Manufacturing Practices compliance.
  • All Product contact parts AISI 316/316L & non contact parts AISI 304.
  • Available Capacity model in octagonal blender 25 kg to 2500 kg batch size.
  • Enclosed rigid drive with reduction gear box and motor.
  • "A" type rigid structure of the machine with two sides resting of product container.
  • Product container having discharge with butterfly valve and man hole.
  • Charging hole with hinged lid with seal for charging and cleaning.
  • Fixed baffles provided for lumps braking.

Safety Features

  • Safety railing provided for rotating area of product container.
  • Overload protection and emergency stop.
  • Charging Option
  • 1. Loading & Unloading by Product container with jacking trolley.
  • 2. Vacuum conveying system.
  • 3. Bin loading by hydraulic hoist.
  • Rotary Intensifier with AC variable drive.
  • PLC Controls with HMI touch screen.
  • SCADA system with 21 CFR Part 11 Compliance.
  • Flame proof motor and Push Button station.
ModelPDB-50PDB-100PDB-120PDB-200PDB-240PDB-300PDB-500PDB-1000PDB-1500PDB-2000PDB-3000PDB-5000
Gross Volume
Liter
6012015024030036060012001800240036006000
Working Volume
Liter
5010012020024030050010001500200030005000
Working Capacity
kg.
255060100120150250500750100015002500
